NMR coupling constant calculation

NMR analysis is one of the indispensable measurement methods for analyzing the molecular structures of organic compounds.
Especially for vicinal coupling constant 3J, which depends on the dihedral angle around the center bond (between atoms at the positions 2 and 3), it can be used for the prediction of the three-dimensional structure of the organic compounds by setting the appropriate formulas and parameters. Recently, it has become possible to predict the three-dimensional structures of proteins and other biopolymers by combining the torsion angle based on 3J coupling constant and the predicted distances between proximate protons based on NMR-NOE information. On the other hand, the number of conformational isomers to be considered is increased with increasing the size of molecule, so the measured coupling constants are observed as the average value of the mixture of conformational isomers. As a result, relying solely on measurements enhance the possibility of predicting an "unnatural" mean three-dimensional structure which does not actually exist.

CONFLEX has two types of 3J calculations.

  1. 3JHH around Csp3-Csp3 bond using Karplus-Imai equation
  2. 3J for arbitrary combination of four atoms using Karplus equation with user-defined parameters

Furthermore, it is also possible to calculate the 3J values for each conformer generated by the conformational search, and calculate their thermodynamic average. By comparing the calculated values with the measured ones, the state of the molecule observed in NMR analysis can be inferred. In addition, a variety of conformational analyses such as measuring the steric effect on the physical properties and the reactivity and more accurate three-dimensional structure analysis can be supported.

This chapter gives an overview of the calculation of NMR coupling constants and the procedure for using the function in CONFLEX.

[Vicinal proton-proton coupling constant (3JHH) calculation using Karplus-Imai equation]

Karplus-Imai equation (below equation) [1], which is one of the improved Karplus equation and was developed to calculate the vicinal proton-proton coupling constant 3JHH around the Csp3-Csp3 bond, has implemented in CONFLEX 7 and later with parameter set [1].

NMR Eq.1

Where the constants and symbols have the following meanings:

Symbol Explanation
3JHH Vicinal coupling constant
θ Dihedral angle between coupling protons
Δχi Difference between group electronegativity of substituent and hydrogen (=2.08) calculated according to Mullay's methods.
φi Dihedral angle between coupling proton and substituent
Δχβj Difference between Mullay's group electronegativity of β-substituents and averaged electronegativity of alkane (=2.40)
ψj Dihedral angle between coupling proton and β-substituent
ω1, ω2 H-C-C bond angle
rC-C C-C bond length
r Distance between coupling proton and nearest atom except directly connected carbon atoms and α-substituents
A-I, K Constants
W, M Constants varied for the type of substitution
L Constant varied for the type of nearest atom carbon or oxygen
Definitions of angles

Please see ref. [1] for details of the Karplus-Imai equation. Generally, the NMR analytical function using Karplus-Imai equation is based on the 3JHHM method included in 3JHH2 program [2] published by the Japanese Chemical Program Exchange Organization (JCPE; currently Japan Computer Chemistry Society).

NMR-3JHH calculation of initial and optimized structures

This section explains how to calculate 3JHH value by using 3,3-Dimethyl-1-mercapto-2-butanol as a example.

DimethylMercapto Butanol

Structure data (DMB.mol)

3,3-DIMETHYL-1-MERCAPTO-2-BUTANOL


 22 21  0  0  0                 1 V2000
  -0.42228   1.47032  -0.03918 C   0  0  0  0  0
   0.00590  -0.00052  -0.00318 C   0  0  0  0  0
  -0.52383  -0.87942  -1.16021 C   0  0  0  0  0
   0.05386  -2.30850  -1.02981 C   0  0  0  0  0
   0.14718   2.32958   1.47446 S   0  0  0  0  0
   1.43693  -0.05700   0.03175 O   0  0  0  0  0
  -2.06329  -0.99499  -1.09495 C   0  0  0  0  0
  -0.12896  -0.31902  -2.54213 C   0  0  0  0  0
  -1.52983   1.55723  -0.10193 H   0  0  0  0  0
   0.01067   1.97322  -0.93329 H   0  0  0  0  0
  -0.34401  -0.45530   0.95369 H   0  0  0  0  0
  -0.36277  -2.99093  -1.80548 H   0  0  0  0  0
  -0.18224  -2.75288  -0.03596 H   0  0  0  0  0
   1.16022  -2.32442  -1.15440 H   0  0  0  0  0
  -0.32229   3.55489   1.17617 H   0  0  0  0  0
   1.68463  -0.92111   0.31239 H   0  0  0  0  0
  -2.45015  -1.70017  -1.86565 H   0  0  0  0  0
  -2.56803  -0.02106  -1.28092 H   0  0  0  0  0
  -2.40160  -1.36949  -0.10193 H   0  0  0  0  0
  -0.45439  -1.00120  -3.36038 H   0  0  0  0  0
   0.97328  -0.19276  -2.63627 H   0  0  0  0  0
  -0.60365   0.66747  -2.74267 H   0  0  0  0  0
  1  2  1  0  0  0
  1  5  1  0  0  0
  1  9  1  0  0  0
  1 10  1  0  0  0
  2  3  1  0  0  0
  2  6  1  0  0  0
  2 11  1  0  0  0
  3  4  1  0  0  0
  3  7  1  0  0  0
  3  8  1  0  0  0
  4 12  1  0  0  0
  4 13  1  0  0  0
  4 14  1  0  0  0
  5 15  1  0  0  0
  6 16  1  0  0  0
  7 17  1  0  0  0
  7 18  1  0  0  0
  7 19  1  0  0  0
  8 20  1  0  0  0
  8 21  1  0  0  0
  8 22  1  0  0  0
M  END

[Execution by Interface]

Open the DMB.mol file by CONFLEX Interface.

Interface DMB

Select [CONFLEX] in Calculation menu, and click Detail Settings in the calculation setting dialog displayed.
A detail setting dialog will be displayed.

Basic Settings DMB

Next, check the check-box of [NMR 3J_HH calculation by Karplus-Imai equation] in the [NMR] dialog on the detail setting dialog. CONFLEX automatically determines all possible coupled proton pairs.

NMR Dialog DMB

The calculation of 3JHH value is applied to the optimized structure. If you want to apply the calculation to the initial structure, select [No Optimization] in the pull-down menu of [Optimization Method:] in the [Geometry Optimization] dialog.

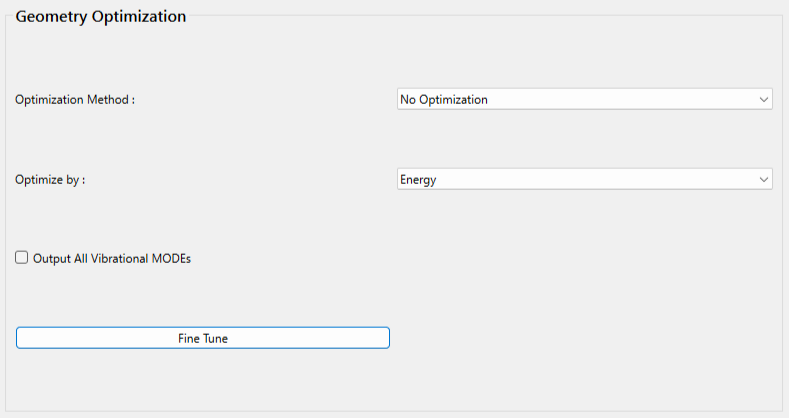

Interface Opt DMB

When the calculation settings are complete, click Submit. The calculation will start.

[Execution by command line]

The calculation settings are defined by describing keywords in the DMB.ini file.

DMB.ini file

NMR

[NMR] keyword means to calculate 3JHH value by using Karplus-Imai equation. CONFLEX automatically determines all possible coupled proton pairs.

The calculation of 3JHH value is applied to the optimized structure. If you want to apply the calculation to the initial structure, add [OPT=NONE] to the DMB.ini file.

DMB.ini file

NMR OPT=NONE

Store the two files of DMB.mol and DMB.ini in an one folder, and execute below command. The calculation will start.

C:\CONFLEX\bin\flex9a_win_x64.exe   -par   C:\CONFLEX\par   DMBenter

The above command is for Windows OS. For the other OS, please refer to [How to execute CONFLEX].

Calculation results

CONFLEX provides a file with the suffix of [.nmr] that contains results of NMR 3J calculation.
The 3JHH calculation results of 3,3-Dimethyl-1-mercapto-2-butanol initial structure are shown below (DMB.nmr). In this case, two proton pairs around C1-C2 that has H9 and H10 bonded to C1 and H11 bonded to C2 (3JH9H11 and 3JH10H11) are calculated.

In the first half of the output, Karplus-Imai equation and the parameters used in this equation are outputted.
In the next “3JHHM TABLES:”, the serial numbers of the coupled proton pair (columns “HI” and “HJ”) to be calculated are outputted.

 !====================================================================================!
 !                                                                                    !
 !  NMR-3JHHM: VICINAL H-H COUPLING CONSTANTS CALCULATION                             !
 !                                                                                    !
 !------------------------------------------------------------------------------------!
 !                                                                                    !
 !  DATE: 2021/02/08    TIME: 12:47:34.37                                             !
 !  DMB: 3,3-DIMETHYL-1-MERCAPTO-2-BUTANOL                                            !
 !  EMPIRICAL FORMULA:  C6H14OS     MW =   134.077                                    !
 !  FORCE FIELD:  MMFF94S(2010-12-04HG)                                               !
 !                                                                                    !
 !------------------------------------------------------------------------------------!
 !                                                                                    !
 !   3JHHM (KARPLUS-IMAI) EQUATION FORMULA:                                           !
 !       3JHH = P1*COS(A) + P2*COS(2*A) + P3*COS(3*A) + P4*COS(2*A)*COS(2*A) +        !
 !              C1*[ P5*ELENEG*COS(A)*COS(B) + P6*ELENEG*COS(2*B) + P7*ELENEG ] +     !
 !              P8*(ANGLE - 110.0) + P9*(LENGTH - 1.5) + P10*E(BETA)*|COS(2*C)| +     !
 !              P11/R(C)**4 + P12/R(O)**4 + CONSTANT                                  !
 !                                                                                    !
 !                                                                                    !
 !   PARAMETERS:                                                                      !
 !            P1        P2        P3        P4        P5        P6                    !
 !          -1.2246    5.0935   -0.1055    0.5711    0.8319    0.0433                 !
 !            P7        P8        P9       P10       P11       P12                    !
 !           0.0345   -0.2058   -8.9222    0.1438   -8.9395    6.9202                 !
 !                                                                                    !
 !                     MONO      1,1-DI    1,2-DI    TRI       TETRA                  !
 !          WEIGHT     1.0000    2.5500    1.1600    2.2900    1.4000                 !
 !        CONSTANT     7.5075    7.0306    6.4793    6.5432    5.5319                 !
 !                                                                                    !
 !------------------------------------------------------------------------------------!
 !                                                                                    !
 !   3JHHM TABLES:                                                                    !
 !                                                                                    !
 !       NUMBER OF CENTRAL BONDS HAVING VICINAL COUPLING PROTONS:    1                !
 !       LIST OF COUPLING PROTON PAIRS AND CENTRAL BONDS:                             !
 !             COUPLED NO      HI         I         J        HJ                       !
 !             ---------- ------------------- -------------------                     !
 !                   1          9         1         2        11                       !
 !                   2         10         1         2        11                       !
 !             --------------------------------------------------                     !
 !                                                                                    !
 !====================================================================================!
 !  TOTAL NUMBER OF CONFORMERS FOUND:     1                                           !
 !  TEMPERATURE:   298.15 KELVIN                                                      !
 !=====================================================================================

In the second half of the output, the 3JHH value (column “3JHH”) and the internal coordinates around the proton pair for each conformer which are required to calculate are outputted at the section “GEOMETRICAL PARAMETERS OF EACH CONFORMER:”. If there are multiple proton pairs around the same C-C bond, the average value of them is also outputted (3JHH (AV.) =) at section “AVERAGED VICINAL H-H COUPLING CONSTANTS:”.

 !=====================================================================================================================!
 !
 !    GEOMETRICAL PARAMETERS OF EACH CONFORMER:
 !
 !      NO.   CONF ID     ENERGY   DISTRIB     I-J BOND     LENGTH     H-H PAIR    3JHH      PHI      ANGLE
 !---------------------------------------------------------------------------------------------------------------------!
 !       1   --------    36.8731  100.0000      1 -    2    1.5323      9 -   11   2.010   -66.928   110.758   108.891
 !       1   --------    36.8731  100.0000      1 -    2    1.5323     10 -   11  10.063   173.879   110.105   108.891
 !=====================================================================================================================!
 !====================================================================================!
 !                                                                                    !
 !   AVERAGED VICINAL H-H COUPLING CONSTANTS:                                         !
 !                                                                                    !
 !             3JHH (   1 ) =   2.010 (Hz)                                            !
 !             3JHH (   2 ) =  10.063 (Hz)                                            !
 !             3JHH ( AV. ) =   6.036 (Hz)                                            !
 !                                                                                    !
 !====================================================================================!

Note that there may be some insufficient results obtained by this NMR 3JHH calculation using MMFF94s optimized structure because the parameters of Karplus-Imai equation are determined based on MM2 force field.
Therefore, it is highly likely that the results of 3JHH calculation obtained by optimized structures using EMM2 force field are better. When the NMR 3JHH calculation is carried out using EMM2 optimization, you perform CONFLEX like below.

[Execution by Interface]

Select [EMM2] in the pull-down menu of [Force Field:] in the [Force Field] dialog on the detail setting dialog.

Force Field Dialog DMB

[Execution by command line]

You should make the DMB.ini file containing [EMM2] keyword.

DMB.ini file

NMR EMM2

The nmr file obtained by EMM2 calculation is shown below.

!=====================================================================================================================!
!
!    GEOMETRICAL PARAMETERS OF EACH CONFORMER:
!
!      NO.   CONF ID     ENERGY   DISTRIB     I-J BOND     LENGTH     H-H PAIR    3JHH      PHI      ANGLE
!---------------------------------------------------------------------------------------------------------------------!
!       1     -----     12.1470  100.0000      1 -    2    1.5420      9 -   11   1.785   -69.875   110.048
!       1     -----     12.1470  100.0000      1 -    2    1.5420     10 -   11   9.573   170.843   109.734
!=====================================================================================================================!
!====================================================================================!
!                                                                                    !
!   AVERAGED VICINAL H-H COUPLING CONSTANTS:                                         !
!                                                                                    !
!             3JHH (   1 ) =   1.785 (Hz)                                            !
!             3JHH (   2 ) =   9.573 (Hz)                                            !
!             3JHH ( AV. ) =   5.679 (Hz)                                            !
!                                                                                    !
!====================================================================================!

NMR-3JHH calculation of multiple conformational isomers

The NMR-3JHH calculation can be used in combination with conformation search. Here, we uses β-D-Glucose as a example.

Steric structure of β-D-Glucose

beta-D-Glucose

Structure data of β-D-Glucose (b-D-glucose.mol)

b-D-glucose


 24 24  0  0  0                 1 V2000
    1.3695    0.2061    0.1154 O   0  0  0  0  0
    1.2178   -1.0943    0.6579 C   0  0  0  0  0
   -1.0088    0.3669   -0.2565 C   0  0  0  0  0
    0.3824    0.4861   -0.8691 C   0  0  0  0  0
   -2.0178    0.5729   -1.2448 O   0  0  0  0  0
   -2.4798   -1.0576    0.9937 O   0  0  0  0  0
   -0.2327   -2.5652    1.8842 O   0  0  0  0  0
    0.6403    1.8795   -1.4228 C   0  0  0  0  0
    2.2841   -1.1000    1.6064 O   0  0  0  0  0
   -0.1084   -1.2465    1.3563 C   0  0  0  0  0
   -1.2097   -1.0083    0.3471 C   0  0  0  0  0
   -0.2182    2.1250   -2.5390 O   0  0  0  0  0
    1.4145   -1.8634   -0.1200 H   0  0  0  0  0
   -1.1510    1.1467    0.5281 H   0  0  0  0  0
    0.5017   -0.2533   -1.6973 H   0  0  0  0  0
   -2.8280    0.2840   -0.8591 H   0  0  0  0  0
   -2.5257   -1.8924    1.4288 H   0  0  0  0  0
    0.4375   -2.6616    2.5390 H   0  0  0  0  0
    1.6888    1.9818   -1.7842 H   0  0  0  0  0
    0.4468    2.6616   -0.6552 H   0  0  0  0  0
    2.8280   -0.3665    1.3741 H   0  0  0  0  0
   -0.1927   -0.5339    2.2095 H   0  0  0  0  0
   -1.1998   -1.7977   -0.4398 H   0  0  0  0  0
   -1.0984    1.9144   -2.2779 H   0  0  0  0  0
  1  2  1  0  0  0
  1  4  1  0  0  0
  2  9  1  0  0  0
  2 10  1  0  0  0
  2 13  1  0  0  0
  3  4  1  0  0  0
  3  5  1  0  0  0
  3 11  1  0  0  0
  3 14  1  0  0  0
  4  8  1  0  0  0
  4 15  1  0  0  0
  5 16  1  0  0  0
  6 11  1  0  0  0
  6 17  1  0  0  0
  7 10  1  0  0  0
  7 18  1  0  0  0
  8 12  1  0  0  0
  8 19  1  0  0  0
  8 20  1  0  0  0
  9 21  1  0  0  0
 10 11  1  0  0  0
 10 22  1  0  0  0
 11 23  1  0  0  0
 12 24  1  0  0  0
M  END

[Execution of Interface]

Open the b-D-glucose.mol file by CONFLEX Interface.

Interface beta-D-Glucose

Select [CONFLEX] in Calculation menu, and click Detail Settings in the calculation setting dialog displayed.
A detail setting dialog will be displayed.

Basic Settings Glucose

Next, in [General Settings] dialog on the detail setting dialog, select [Conformation Search] in the pull-down menu of [Calculation Type:].

General Settings Glucose

Next, check the check-box of [NMR 3J_HH calculation by Karplus-Imai equation] in the NMR dialog.

NMR Dialog

When the calculation settings are complete, click Submit. The calculation will start.

CONFLEX performs a conformation search first and calculates NMR 3JHH value of each conformer found. Furthermore, it provides coupling constants weighted based on an existence probability.

[Execution by command]

The calculation settings are defined by describing keywords in the b-D-glucose.ini file.

b-D-glucose.ini file

NMR CONFLEX

[MMR] means to calculate 3JHH value by using Karplus-Imai equation.
[CONFLEX] means to perform a conformation search.

Store the two files of b-D-glucose.mol and b-D-glucose.ini in an one folder, and execute below command. The calculation will start.

C:\CONFLEX\bin\flex9a_win_x64.exe   -par   C:\CONFLEX\par   b-D-glucoseenter

The above command is for Windows OS. For the other OS, please refer to [How to execute CONFLEX].

CONFLEX performs a conformation search first and calculates NMR 3JHH value of each conformer found. Furthermore, it provides coupling constants weighted based on an existence probability.

Calculation results

When the 3JHH calculation is applied to multiple conformers, the 3JHH values and internal coordinate information of multiple proton pairs in each conformation are outputted and the thermodynamic average based on Boltzmann distribution is also outputted.

A part of contents in the b-D-glucose.nmr file

...
 !=====================================================================================================================!
 !
 !    GEOMETRICAL PARAMETERS OF EACH CONFORMER:
 !
 !      NO.   CONF ID     ENERGY   DISTRIB     I-J BOND     LENGTH     H-H PAIR    3JHH      PHI      ANGLE
 !---------------------------------------------------------------------------------------------------------------------!
 !       1   00000001    79.8320   49.0347      2 -   10    1.5376     13 -   22   8.078   171.796   111.222   110.519
 !                                              3 -    4    1.5395     14 -   15   9.471  -176.573   109.804   109.384
 !                                              3 -   11    1.5300     14 -   23   9.059   170.407   109.839   110.494
 !                                              4 -    8    1.5350     15 -   19   4.390   -67.989   108.838   110.176
 !                                              4 -    8    1.5350     15 -   20   9.133   174.032   109.247   110.993
 !                                             10 -   11    1.5257     22 -   23   8.829  -169.298   110.301   110.781
 !---------------------------------------------------------------------------------------------------------------------!
 !       2   00000002    79.8625   46.5768      2 -   10    1.5353     13 -   22   8.164   173.410   111.296   110.739
 !                                              3 -    4    1.5385     14 -   15   9.351  -171.357   110.368   109.897
 !                                              3 -   11    1.5309     14 -   23   8.720   167.539   109.812   110.347
 !                                              4 -    8    1.5342     15 -   19   0.616    67.424   109.939   112.095
 !                                              4 -    8    1.5342     15 -   20   3.173   -53.305   108.931   110.080
 !                                             10 -   11    1.5238     22 -   23   8.935  -169.970   110.281   110.564
 !---------------------------------------------------------------------------------------------------------------------!
 !       3   00000009    81.7252    2.0081      2 -   10    1.5352     13 -   22   8.211   173.300   111.147   110.580
 !                                              3 -    4    1.5390     14 -   15   9.396  -172.203   110.326   109.893
 !                                              3 -   11    1.5318     14 -   23   8.705   167.362   109.759   110.273
 !                                              4 -    8    1.5341     15 -   19   0.634    67.748   109.885   112.066
 !                                              4 -    8    1.5341     15 -   20   3.185   -52.960   108.922   110.141
 !                                             10 -   11    1.5247     22 -   23   8.835  -169.118   110.310   110.552
 !---------------------------------------------------------------------------------------------------------------------!
 !       4   00000003    81.9524    1.3687      2 -   10    1.5354     13 -   22   8.094   172.342   111.443   110.626
 !                                              3 -    4    1.5362     14 -   15   9.320  -174.765   110.457   110.531
 !                                              3 -   11    1.5312     14 -   23   8.887   169.039   109.858   110.365
 !                                              4 -    8    1.5368     15 -   19   8.184  -169.220   109.281   110.569
 !                                              4 -    8    1.5368     15 -   20   2.477    69.460   109.957   111.922
 !                                             10 -   11    1.5245     22 -   23   8.865  -169.387   110.255   110.616
 !---------------------------------------------------------------------------------------------------------------------!

...
 !====================================================================================!
 !                                                                                    !
 !   AVERAGED VICINAL H-H COUPLING CONSTANTS:                                         !
 !                                                                                    !
 !             3JHH (   1 ) =   8.122 (Hz)                                            !
 !                                                                                    !
 !             3JHH (   2 ) =   9.411 (Hz)                                            !
 !                                                                                    !
 !             3JHH (   3 ) =   8.890 (Hz)                                            !
 !                                                                                    !
 !             3JHH (   4 ) =   2.572 (Hz)                                            !
 !             3JHH (   5 ) =   6.082 (Hz)                                            !
 !             3JHH ( AV. ) =   4.327 (Hz)                                            !
 !                                                                                    !
 !             3JHH (   6 ) =   8.880 (Hz)                                            !
 !                                                                                    !
 !====================================================================================!

It is also possible to perform the 3JHH calculation on the conformers obtained by the conformation search that has already been performed.

[Execution by Interface]

Store the fxf file obtained by the conformation search that has already been performed and the input file used in the search in one folder. For example, store the b-D-glucose.mol and b-D-glucose.fxf files in the one folder. Next, open the b-D-glucose.mol file by CONFLEX Interface.

Interface b-D-glucose

Select [CONFLEX] in Calculation menu, and click Detail Settings in the calculation setting dialog displayed.
A detail setting dialog will be displayed.

Basic Settings

Next, in [General Settings] dialog on the detail setting dialog, select [Conformation Search] in the pull-down menu of [Calculation Type:].

General Settings

Next, check the check-box of [NMR 3J_HH calculation by Karplus-Imai equation] in the NMR dialog.

NMR Settings

When the calculation settings are complete, click Edit & Submit.

Add [NOSEARCH] keyword to the dialog displayed.

Edit and Submit

By including both the keywords “CONFLEX” and “NOSEARCH”, the structure data of conformers is obtained from the fxf file. New or additional conformation search is not performed.
When the calculation settings are complete, click Submit. The calculation will start.

CONFLEX calculates NMR 3JHH values of each conformer obtained from the fxf file. Furthermore, it provides coupling constants weighted based on an existence probability.

[Execute by command line]

Store the fxf file obtained by the conformation search that has already been performed and the input file used in the search in one folder. For example, store the b-D-glucose.mol and b-D-glucose.fxf files in the one folder. The contents in the b-D-glucose.ini file are shown below.

b-D-glucose.ini file

NMR CONFLEX NOSEARCH

By including both the keywords “CONFLEX” and “NOSEARCH”, the structure data of conformers is obtained from the fxf file. New or additional conformation search is not performed.

Execute below command. The calculation will start.

C:\CONFLEX\bin\flex9a_win_x64.exe   -par   C:\CONFLEX\par   b-D-glucoseenter

The above command is for Windows OS. For the other OS, please refer to [How to execute CONFLEX].

CONFLEX calculates NMR 3JHH values of each conformer obtained from the fxf file. Furthermore, it provides coupling constants weighted based on an existence probability.

[3J coupling constant calculation using Karplus equation and customized parameters]

In the previous section, the coupling constants 3JHH were calculated by Karplus-Imai equation based on the dihedral angle and the bond angle with automatically extraction of H-Csp3-Csp3-H from the structural information.
On the other hand, there are a wide variety of combinations of 3J used for NMR structural analysis. Therefore, it would be useful when other 3J values could be calculated using the Karplus equation and linked with the conformation search.

In CONFLEX8.C and later, it has become possible to calculate the 3JWZ value for any combination of four bonded atoms W-X-Y-Z by setting the parameters based on eq. (1).

NMR Eq.1

where the A, Bm, and Cn are parameter, the θ is dihedral angle of W-X-Y-Z, the δcos and δsin are phase angle of cosine and sine terms, respectively. These parameters can be specified by the atom type number of the MMFF94s (keyword “NMR_3J_ATYPE =”) or by the serial number of the input data (keyword “NMR_3J_NUMBER =”). These two can be set at the same time, and the specification with the serial number has priority when the parameter set for W-X-Y-Z are specified by both keywords.

Conformation search and 3J calculation of β-D-Glucose

We use β-D-Glucose as a example.

Steric structure of β-D-Glucose

beta-D-Glucose

Here, we calculate 3JCH of Csp3-Osp3-Csp3-H (Representation by atom types in MMFF94s: 1-6-1-5) by using the eq. 2.

NMR Eq.2

Here, the first term of eq. 2, 1.0, corresponds to the first term of eq. 1, A. The cosine functions correspond to the second term of eq. 1 (m=2,B1=2.0,B2=3.0,δcos=30.0). The sine functions correspond to the third term of eq. 1 (n=2,C1=4.0,C2=5.0,δsin=0.0).
Although the 2-1-4-15 in the serial number belongs to Csp3-Osp3-Csp3-H combination, we calculate the 3JCH of 2-1-4-15 by using the eq. 3.

NMR Eq.3

The eq. 3 corresponds to the eq. 1 with A=1.0, m=3, B1=2.0, B2=3.0, B3=4.0, and δcos=30.0.

Furthermore, we calculate 3JO1C11 of O1-C2-C10-C11 (Representation by serial number:1-2-10-11) by using the eq. 4.

NMR Eq.4

The eq. 4 corresponds to the eq. 1 with A=11.0, m=3, B1=12.0, B2=13.0, B3=14.0, and δcos=0.0.

[Execution by Interface]

Open the b-D-glucose.mol file by CONFLEX Interface.

Interface Glucose

Select [CONFLEX] in Calculation menu, and click Detail Settings in the calculation setting dialog displayed.
A detail setting dialog will be displayed.

Basic Settings GLucose

First, in [General Settings] dialog on the detail setting dialog, select [Conformation Search] in the pull-down menu of [Calculation Type:].

General Settings

Next, we make settings for the eqs. 2 ~ 4.
Check the check-box of [NMR 3J_WZ calculation by Karplus equation] in the NMR dialog. A dialog for setting the equation will be displayed.

NMR Dialog Karplus

We make the eq. 2. Select [Atom type] in the pull-down menu of [Set parameters:]. Set the i, j, k, and l to 1, 6, 1, and 5, respectively, and set the A to 1.0.
Select 2 in the pull-down menu of [m:]. Set the Delta_cos to 30.0. Set the B1 and B2 to 2.0 and 3.0, respectively.
Next, select 2 in the pull-down menu of [n:]. Set the Delta_sin to 0.0. Set the C1 and C2 to 4.0 and 5.0, respectively.

NMR Set1

When the settings are complete, click OK.

You can see the parameters for the eq. 2 in the NMR dialog.
Next, in order to make settings for the eq. 3, click [+]. The dialog for setting the equation will be displayed again.

NMR Parm1

We make the eq. 3. Select [Atom serial number] in the pull-down menu of [Set parameters:]. Set the i, j, k, and l to 2, 1, 4, and 15, respectively, and set the A to 1.0.
Select 3 in the pull-down menu of [m:]. Set the Delta_cos to 30.0. Set the B1, B2, and B3 to 2.0, 3.0, and 4.0, respectively.

NMR Set2

When the settings are complete, click OK.

You can see the parameters for the eq. 3 in the NMR dialog.
Next, in order to make settings for the eq. 4, click [+]. The dialog for setting the equation will be displayed.

NMR Parm2

We make the eq. 4. Select [Atom serial number] in the pull-down menu of [Set parameters:]. Set the i, j, k, and l to 1, 2, 10, and 11, respectively, and set the A to 11.0.
Select 3 in the pull-down menu of [m:]. Set the Delta_cos to 0.0. Set the B1, B2, and B3 to 12.0, 13.0, and 14.0, respectively.

NMR Set3

When the settings are complete, click OK.

You can see the parameters for the eq. 4 in the NMR dialog.

NMR Parm3

When the all settings are complete, click Submit.
CONFLEX performs a conformation search first and calculates NMR 3J value of each conformer found by using the defined equations. Furthermore, it provides coupling constants weighted based on an existence probability.

[Execution by command line]

The calculation settings are defined by describing keywords in the b-D-glucose.ini file.

b-D-glucose.ini file

CONFLEX
NMR
NMR_3J_ATYPE=(1,6,1,5)(1.0)(COS,30.0,2,2.0,3.0)(SIN,0.0,2,4.0,5.0)
NMR_3J_NUMBER=(2,1,4,15)(1.0)(COS,30.0,3,2.0,3.0,4.0)
NMR_3J_NUMBER=(1,2,10,11)(11.0)(COS,0.0,3,12.0,13.0,14.0)

Regarding the [NMR_3J_ATYPE=] and [NMR_3J_NUMBER=] keywords, the black letters set [W-X-Y-Z], the red ones set the A of eq. 1, the blue ones set the second term of eq. 1, and the green ones set the third term of eq. 1.
The parentheses in blue represents (COS,δcos,m,B1,B2,...,Bm), and the parentheses in green represents (SIN,δsin,n,C1,C2,...,Cn). These keywords at lines 3, 4, and 5 set the eqs. 2, 3, and 4, respectively.

Store the two files of b-D-glucose.mol and b-D-glucose.ini in an one folder, and execute below command. The calculation will start.

C:\CONFLEX\bin\flex9a_win_x64.exe   -par   C:\CONFLEX\par   b-D-glucoseenter

The above command is for Windows OS. For the other OS, please refer to [How to execute CONFLEX].

CONFLEX performs a conformation search first and calculates NMR 3J value of each conformer found by using the defined equations. Furthermore, it provides coupling constants weighted based on an existence probability.

Calculation results

The contents in the b-D-glucose.nmr obtained by the calculation are shown below. At the beginning of the file, there are information of the molecule calculated and Karplus equation.

!====================================================================================!
!                                                                                    !
!  NMR 3J COUPLING CONSTANTS CALCULATION                                             !
!                                                                                    !
!------------------------------------------------------------------------------------!
!                                                                                    !
!  DATE: 2019/10/02    TIME: 10:49:25.87                                             !
!  BGLU: b-glucose.mol                                                               !
!  EMPIRICAL FORMULA:       MW =   180.063                                           !
!  FORCE FIELD:  MMFF94S(2010-12-04HG)                                               !
!                                                                                    !
!------------------------------------------------------------------------------------!
!                                                                                    !
!   CALCULATION USING KARPLUS EQUATION FORMULA AS BELOW:                             !
!                                                                                    !
!       3JWZ = A0 + SUM_I {B_I*COS(I*(D + P_COS))}                                   !
!                 + SUM_J {C_J*SIN(J*(D + P_SIN))}                                   !
!                                                                                    !
!              D     : DIHEDRAL ANGLE OF W-X-Y-Z                                     !
!              P_COS : PHASE ANGLE FOR COS                                           !
!              P_SIN : PHASE ANGLE FOR SIN                                           !
!                                                                                    !
...

Next, the file shows the parameters of the eq. 2 and the atom members to which the eq. 2 are assigned.

!                                                                                    !
!       *** SETTING PARAMETERS BY ATOM TYPES ***                                     !
!                                                                                    !
!       NO.    1:     ATOM TYPES OF DIHEDRAL=    1 -    6 -    1 -    5              !
!                                                                                    !
!          *** PARAMETER SET ***                                                     !
!                                                                                    !
!            A0 :    1.00000                                                         !
!                                                                                    !
!            COS PART, P_COS(DEGREE)=  30.00                                         !
!            I      B_I                                                              !
!            1     2.000                                                             !
!            2     3.000                                                             !
!                                                                                    !
!            SIN PART, P_SIN(DEGREE)=   0.00                                         !
!            J      C_J                                                              !
!            1     4.000                                                             !
!            2     5.000                                                             !
!                                                                                    !
!       ASSIGNED DIHEDRAL: INPUT NO.     4 -    1 -    2 -   13                      !
!       ASSIGNED DIHEDRAL: INPUT NO.     2 -    1 -    4 -   15                      !
!                                                                                    !
...

Next, the file shows the parameters of the eqs. 3 and 4 and the atom members to which the eqs. 3 and 4 are assigned, respectively.
Here, the C2-O1-C4-H15 has already defined by the eq. 2 (see above). Therefore, the program outputs "THEN OVERWRITE THE PARAMETERS AS BELOW." and newly applies the eq. 3 to the C2-O1-C4-H15.

!                                                                                    !
!       *** SETTING PARAMETERS BY INPUT NO. ***                                      !
!                                                                                    !
!       INPUT NO.:    2 -    1 -    4 -   15                                         !
!                                                                                    !
!        CHECK CONNECTIVITY ...  EXISTED.                                            !
!                                                                                    !
!          *** BUT ALREADY SETTING BY ABOVE ATOM TYPES (NO.     1)!!! ***            !
!          *** THEN OVERWRITE THE PARAMETERS AS BELOW.                ***            !
!                                                                                    !
!          *** PARAMETER SET ***                                                     !
!                                                                                    !
!            A0 :    1.00000                                                         !
!                                                                                    !
!            COS PART, P_COS(DEGREE)=  30.00                                         !
!            I      B_I                                                              !
!            1     2.000                                                             !
!            2     3.000                                                             !
!            3     4.000                                                             !
!                                                                                    !
!       INPUT NO.:    1 -    2 -   10 -   11                                         !
!                                                                                    !
!        CHECK CONNECTIVITY ...  EXISTED.                                            !
!                                                                                    !
!          *** PARAMETER SET ***                                                     !
!                                                                                    !
!            A0 :   11.00000                                                         !
!                                                                                    !
!            COS PART, P_COS(DEGREE)=   0.00                                         !
!            I      B_I                                                              !
!            1    12.000                                                             !
!            2    13.000                                                             !
!            3    14.000                                                             !
!                                                                                    !
...

Next, the 3J value, dihedral angle, and values of each term in Karplus equation in each conformer are shown.

!------------------------------------------------------------------------------------!
!  TOTAL NUMBER OF CONFORMERS FOUND:    15                                           !
!  TEMPERATURE:   298.15 KELVIN                                                      !
!=====================================================================================================================!
!
!    GEOMETRICAL PARAMETERS OF EACH CONFORMER:
!
!      NO.   CONF ID     ENERGY   DISTRIB     X-Y BOND     LENGTH     W-Z PAIR    3JWZ      PHI     A0     COS     SIN
!---------------------------------------------------------------------------------------------------------------------!
!       1   00000001    79.8320   49.0347      1 -    2    1.4198      4 -   13   5.532   62.88   1.000  -3.085   7.618
!                                              1 -    4    1.4357      2 -   15   4.533  -59.05   1.000   3.533   0.000
!                                              2 -   10    1.5376      1 -   11  -1.380   56.72  11.000 -12.380   0.000
!---------------------------------------------------------------------------------------------------------------------!
!       2   00000002    79.8625   46.5768      1 -    2    1.4181      4 -   13   5.528   62.92   1.000  -3.086   7.615
!                                              1 -    4    1.4425      2 -   15   3.334  -62.81   1.000   2.334   0.000
!                                              2 -   10    1.5353      1 -   11  -2.574   58.48  11.000 -13.574   0.000
!---------------------------------------------------------------------------------------------------------------------!
!       3   00000009    81.7252    2.0081      1 -    2    1.4184      4 -   13   5.593   62.23   1.000  -3.069   7.662
!                                              1 -    4    1.4435      2 -   15   3.655  -61.81   1.000   2.655   0.000
!                                              2 -   10    1.5352      1 -   11  -2.237   57.96  11.000 -13.237   0.000
!---------------------------------------------------------------------------------------------------------------------!
...

The thermodynamic average based on the Boltzmann distribution is outputted at the end of file.

!====================================================================================!
!                                                                                    !
!   AVERAGED VICINAL W-Z COUPLING CONSTANTS:                                         !
!                                                                                    !
!             3J_WZ (   1 ) =   5.531 (Hz)                                           !
!                                                                                    !
!             3J_WZ (   2 ) =   3.938 (Hz)                                           !
!                                                                                    !
!             3J_WZ (   3 ) =  -1.968 (Hz)                                           !
!                                                                                    !
!====================================================================================!

References

  1. “An Extension of multiparametric Karplus equation”, Keisuke Imai, Eiji Ōsawa, Tetrahedron Lett., Vol. 30, No. 32, 4251-4254 (1989).
  2. “3JHH2”, Keisuke Imai, Eiji Ōsawa, JCPE, P012.
